With this plant NCO confirmed once again its full capabilities in terms of designing and manufacturing complete rolling mills for long products.
The solutions adopted with this plant allow for:
-flexibility in terms of quick and easy production changes, thanks to the sliding reversing 2-high roughing stand
-compact and cost-efficient plant, allowing also for great energy saving
-reliability along with decreased maintenance needs, thanks to the robust design and improved technological choices
The scope of supply included:
- General Engineering and Process engineering

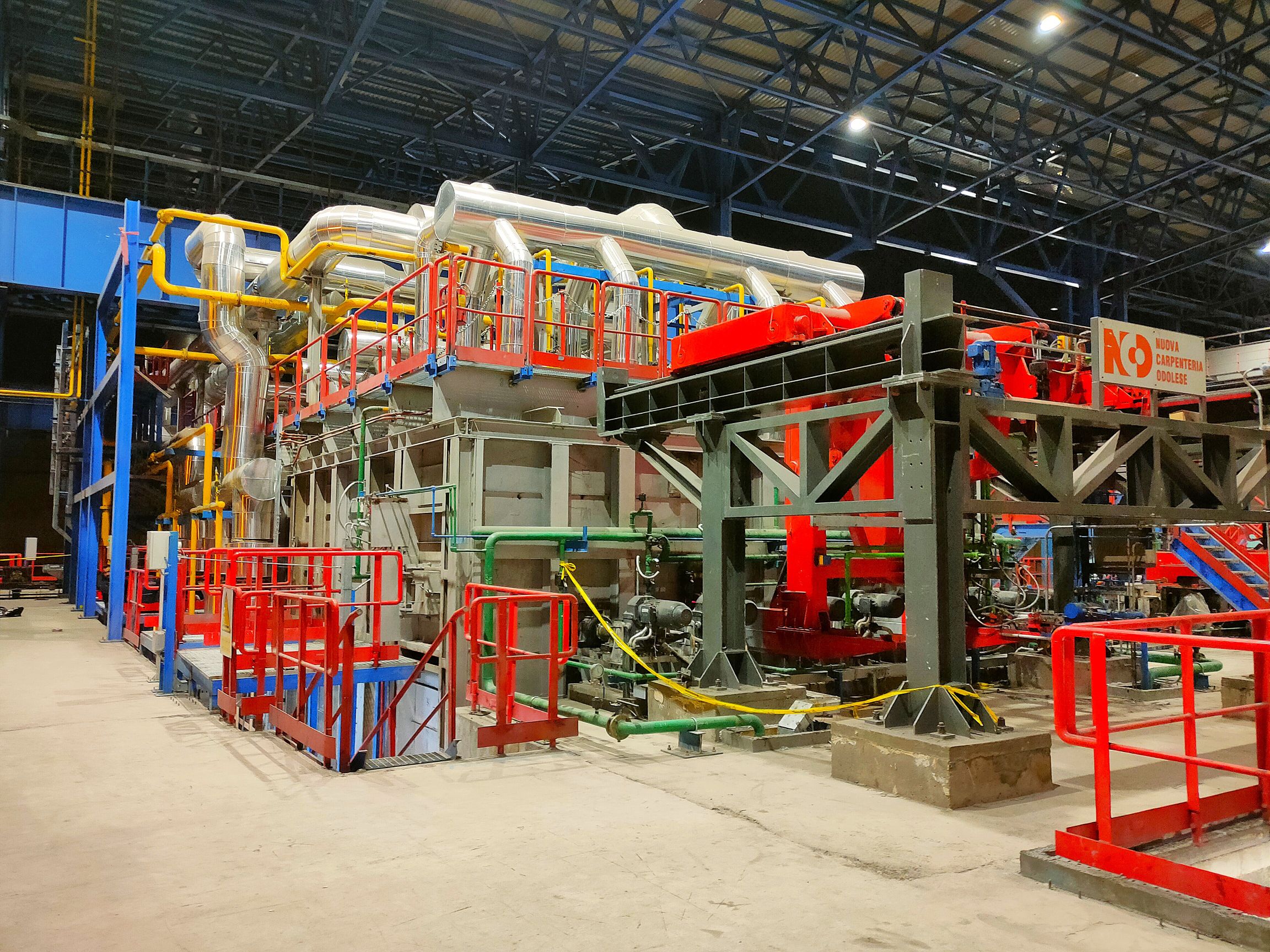

- Walking beam type reheating furnace 60/80 t/h
- Hi-pressure water descaling system
- BDM consisting of a Two-High Shiftable Reversing stand, Housing-less type, equipped with entry and exit adjustable roller table, centering devices and bar manipulators

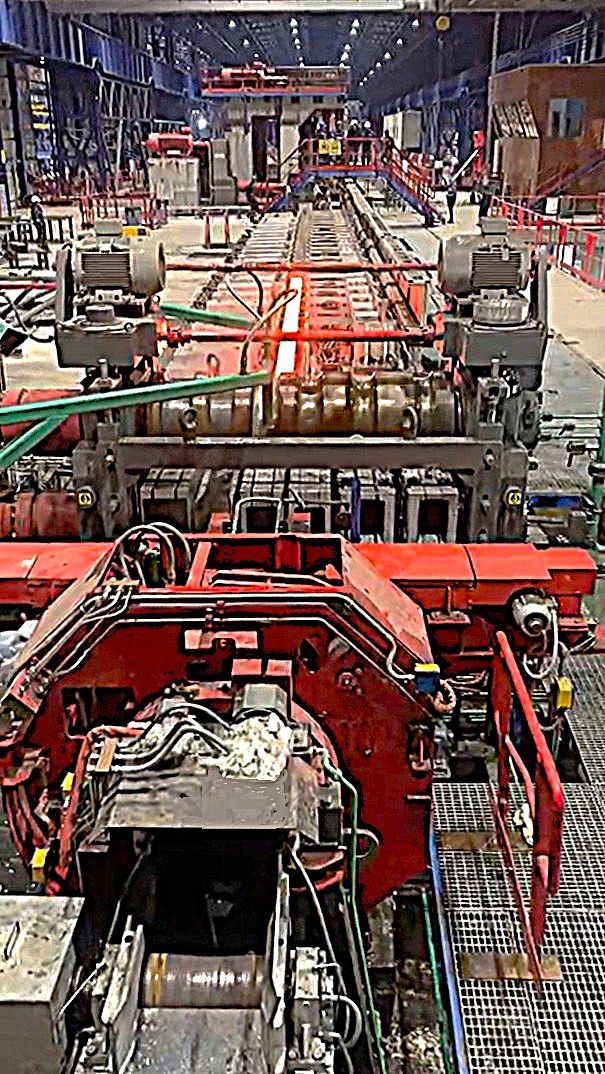

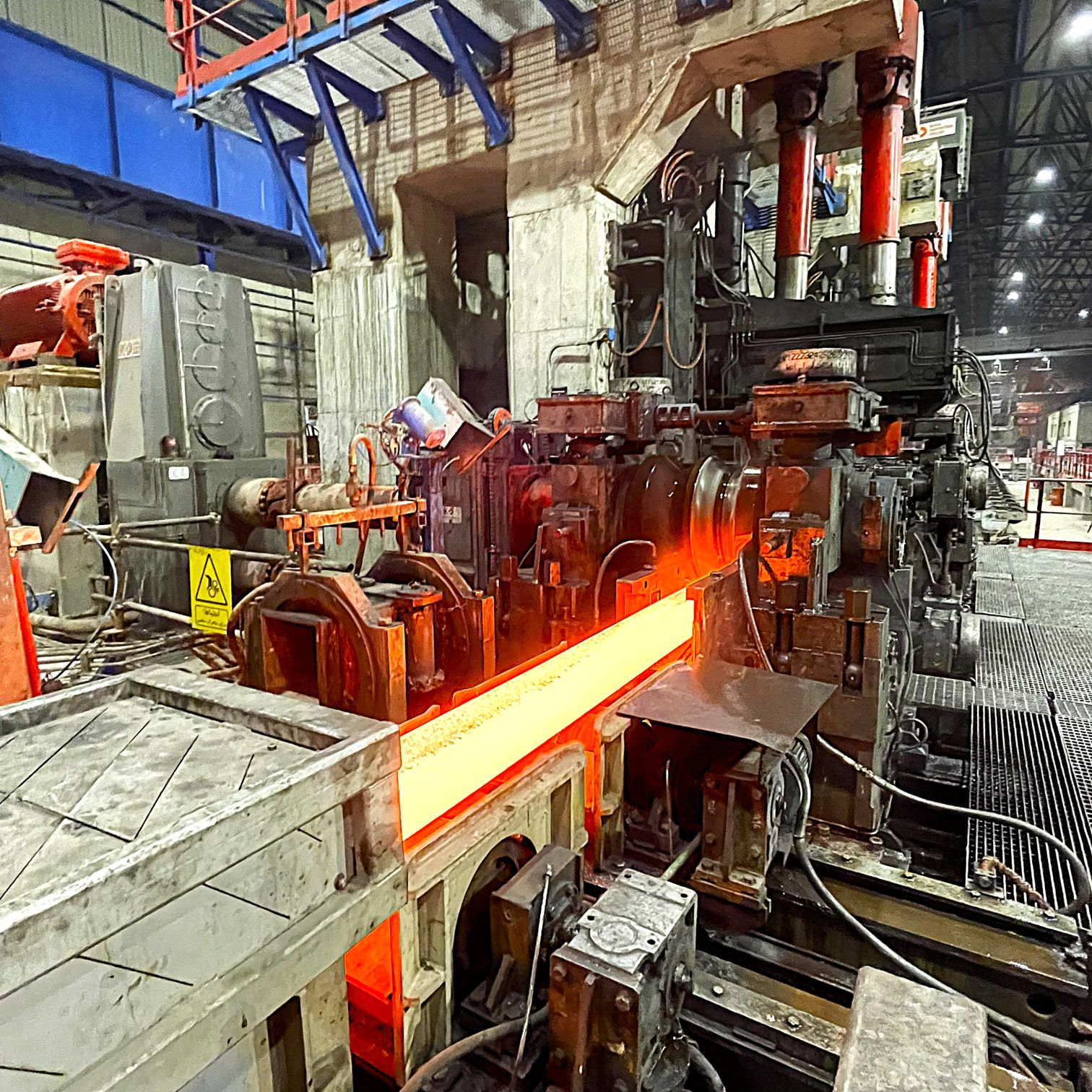

- Continuous train with four rolling stands, housing-less type, traversing, alternatively arranged in H and V configuration
- Layer transfer and preparation system
- Cut to length area with dry-type abrasive cut-off machine

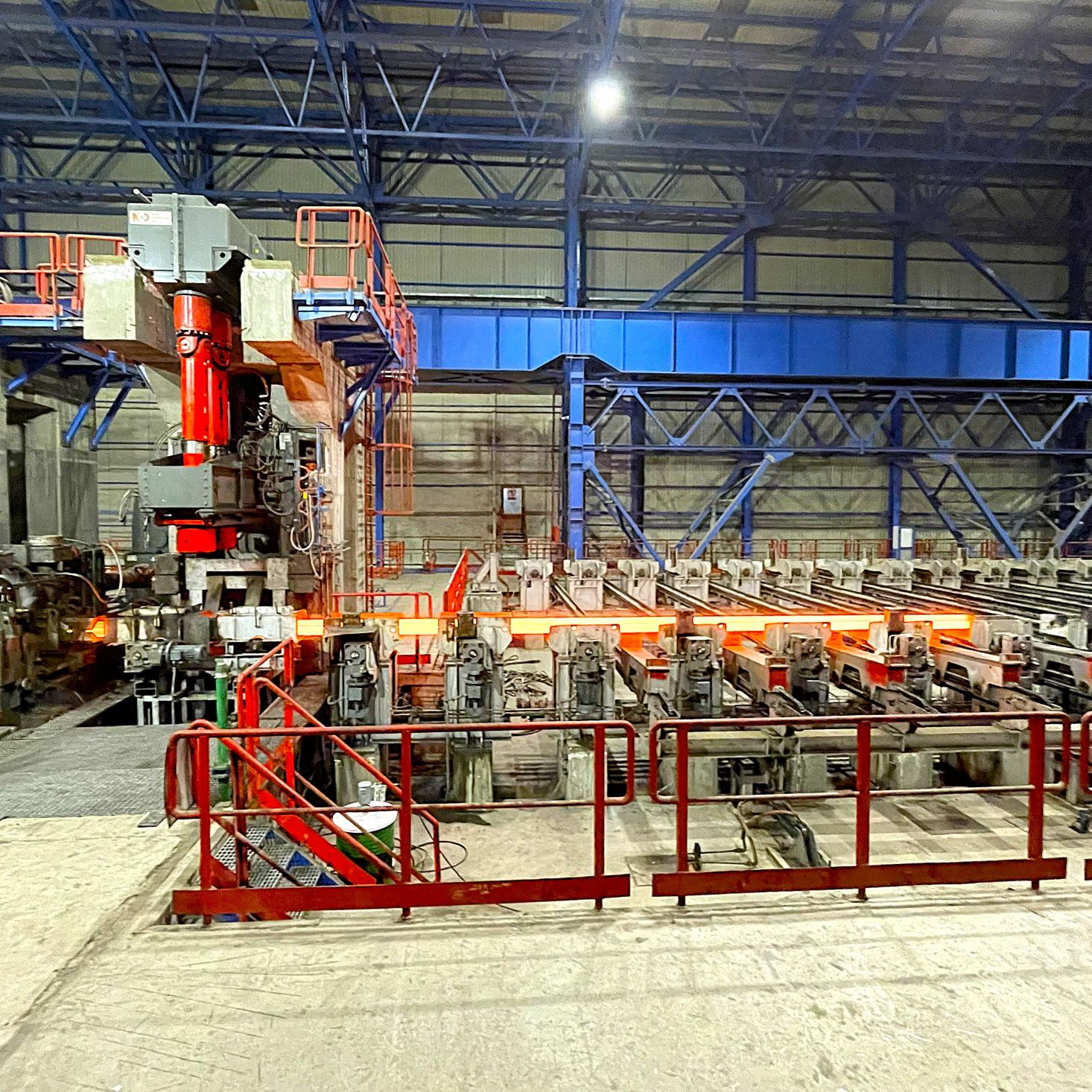

- Cooling bed and automatic stacking, tying and storing area
- Hydraulic and lubrication systems
- Quick rolls changing devices and stand tilter

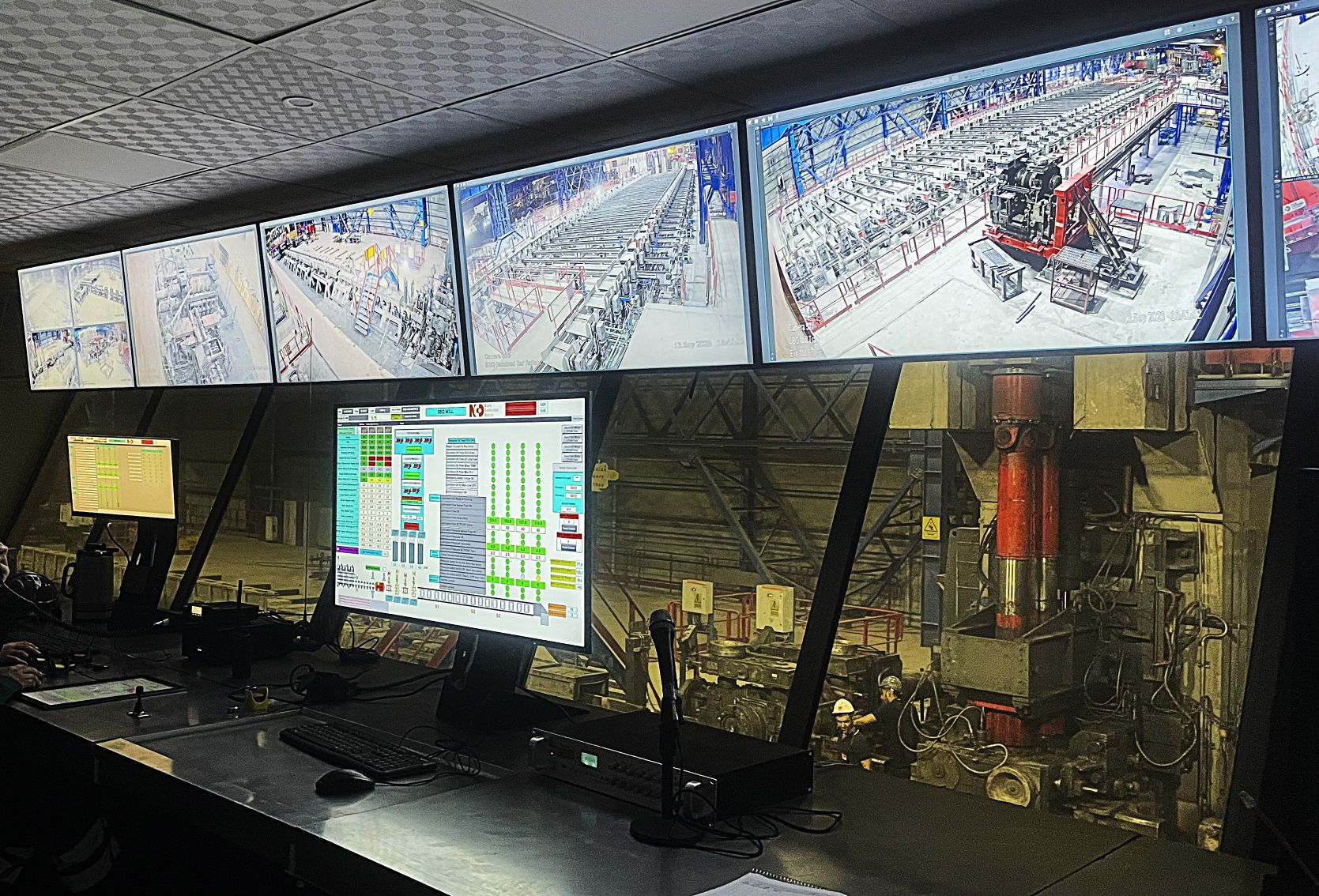

- Electrical and automation systems
- Supervision to erection and commissioning
- On-site training
Main technical data
Starting material
|
Item |
Type |
Dimensions [mm] |
Length [mm] |
|
1 |
Billet CCM |
220 x 220 |
6.000 |
|
2 |
Round CCM |
250 dia. |
6.000 |
|
3 |
Billet CCM |
200 x 200 |
6.000 |
Finished products grades
- Low, medium and high carbon steels
- Chrome-Moly steels
- Ball bearing steels
- Silico-Manganese Spring Steels
- Chrome, Chrome-Vanadium, Cr-V-Mo spring steels
- Cold Heading quality steels
Max Ultimate Tensile Strength 120 kN
|
Shape |
Size |
|
Round bar |
Ø 80, 100, 125, 150, 200 mm |
|
Squares |
90, 100, 125, 150 mm |
The high quality of the final product in terms of the very strict tolerance has been fully achieved thanks to:
- Fixed rolling axes (no rolled stock deviation)
- Twist-free of the rolled stock due to H-V alternatively arranged stands
- Minimum tension control
- Optimised roll pass design for all products
- Cartridge type stands, designed with maximum sturdiness to withstand heavy rolling loads
